“Intel® Wireless LAN Driver Ver.23.120.0.3” Update Program

Applicable models
VJS124*
VJS144*
VJZ141*, VJZ142*

Applicable OS
Windows 11 Pro 64bit
Windows 10 Pro 64bit

Issues to be resolved

• The following vulnerabilities have been addressed:
  INTEL-SA-01224
  INTEL-SA-01270

• This version also includes fixes for the following issues that were fixed in previous version.

• Improved stability of operation.

• The following vulnerabilities have been addressed:
  INTEL-SA-01167
  INTEL-SA-01108
  INTEL-SA-01039
  INTEL-SA-00947
  INTEL-SA-00621
  INTEL-SA-00766(CVE-2022-27635,CVE-2022-40964,CVE-2022-46329,CVE-2022-36351)
  INTEL-SA-00582
  INTEL-SA-00509
  INTEL-SA-00402

Download procedures

1. Prepare a folder to store the downloaded file.

* In this explanation, we will use a folder named “Update” created on C Drive.
* Please use only single-byte alphanumeric characters for the folder’s name.
If you use double-byte characters, single-byte spaces, special characters, etc., the program cannot be executed correctly.

2. Review the “Software License Agreement”.

3. Click the [Agree and Download] button and download the update program to the folder created in Step 1.

4. After downloading the program, apply the program by referring to the “How to apply the program and prior confirmation” below.

5. For now, just download and do not run the file. After applying the update program, delete the “Update” folder created in Step 1.

How to apply the program and prior confirmation

■Prior confirmation

• Always restart your PC after applying this program.

• This update program should be applied only when the version of “Intel® Wireless LAN Driver” is “Ver.23.120.0.3” or below

• This program is also distributed via Windows Update.

■How to apply the program

1. Close all applications running on Windows.

2. Open the [PC (Computer)] – [Local Disk (C:)] – [Update] folder (the folder where you downloaded the file) and double-click the [SP000743.exe] file.

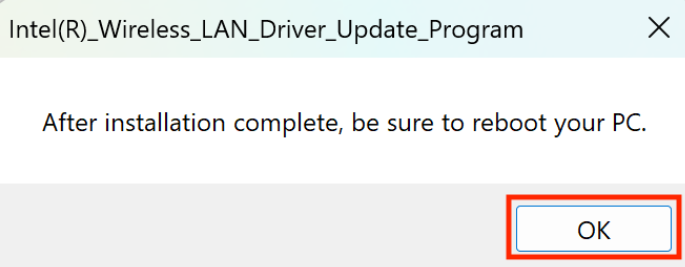

3. The following dialog appears, so review the content and click [OK].
    

4. When the User Account Control screen appears, click [Yes]. It will begin applying the program.

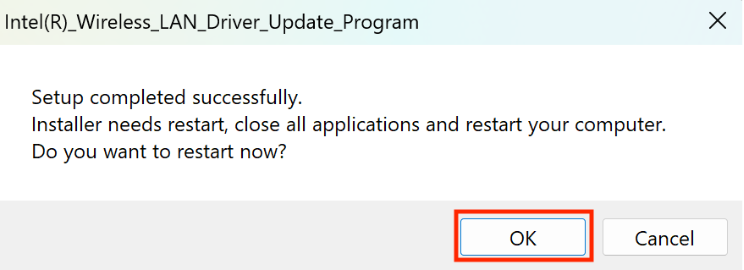

5. If the following dialog appears, the update has been successfully completed. Click [OK]. The PC will restart.

 

This completes all procedures.

How to confirm that the program has been applied

1. Open [Device Manager].

2. Double click [Network Adapter].

3. Double click one of the followings: “Intel® Wi-Fi 6 AX200 160Mhz”, “Intel® Wi-Fi 6 AX201 160Mhz”, “Intel® Wi-Fi 6 AX203”.
   Properties will appear.

4. Click the [Driver] tab. If the version displayed is “23.120.0.3”, the update has been successful.
    

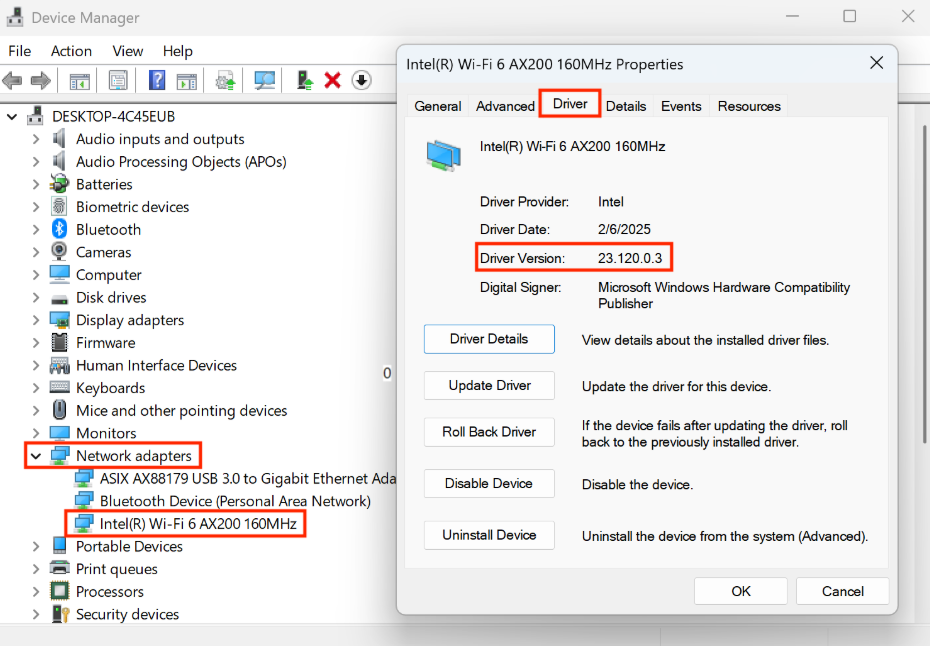

・For “Intel® Wi-Fi 6 AX200 160Mhz”

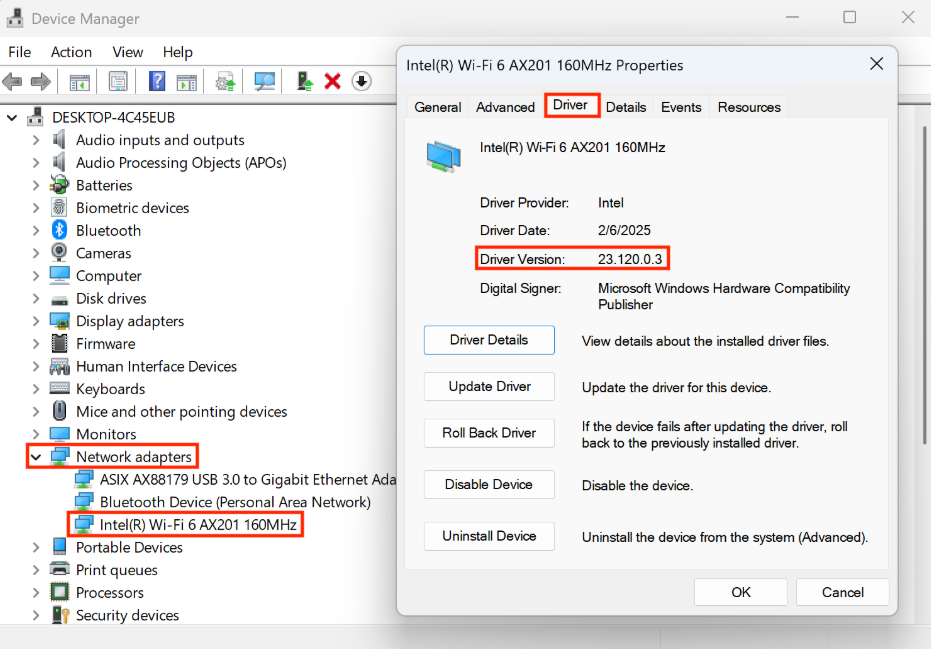

・For “Intel® Wi-Fi 6 AX201 160Mhz”

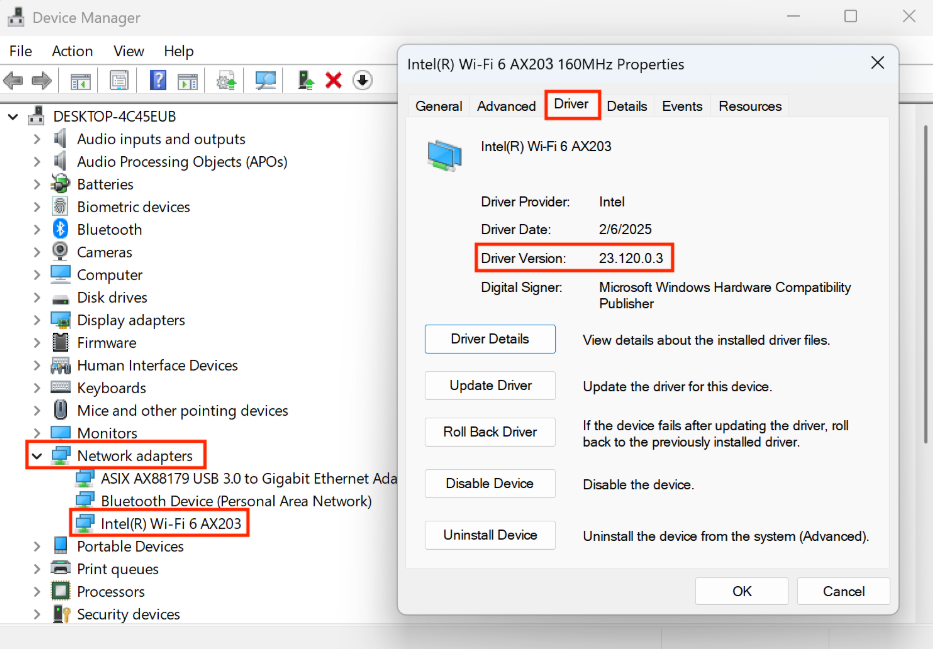

・For “Intel® Wi-Fi 6 AX203”
